Transfer Case: Everything You Need to Know
What Is a Transfer Case?
A transfer case is a crucial part of a four-wheel-drive (4WD) or all-wheel-drive (AWD) vehicle. Positioned behind the transmission, it splits power from the engine and sends it to both the front and rear axles. As a result, it plays an essential role in enabling balanced traction and optimal off-road capabilities.

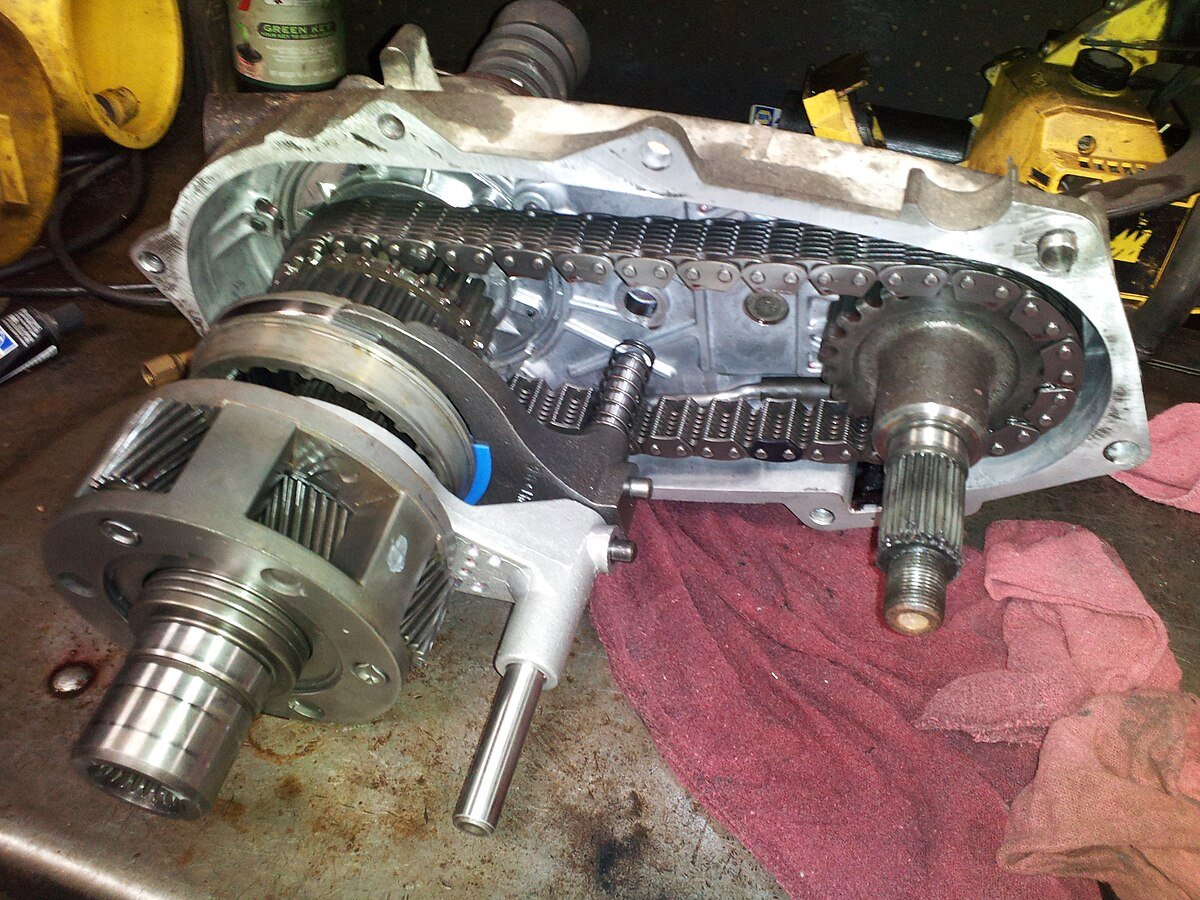

Usually housed in a durable metal casing, the transfer case contains a mix of gears and chains. These internal mechanisms help route torque where it’s needed most. Interestingly, some advanced cases allow switching between 2WD and 4WD modes based on driving conditions.
Why Is a Transfer Case Important?
Without a functioning transfer case, 4WD and AWD vehicles wouldn’t be able to operate properly. The component is responsible for distributing power evenly. This becomes especially vital when driving over slippery or uneven terrain.
By engaging both axles, the transfer case improves traction, making your vehicle safer in snow, mud, or steep inclines. It also helps reduce stress on the transmission, which in turn extends the lifespan of other drivetrain parts.
Types of Transfer Cases
There are several types, each suited to specific vehicle types and performance goals:
- Chain-Driven: Lightweight and quieter; often found in modern SUVs.
- Gear-Driven: Stronger and more durable; ideal for heavy-duty trucks.
- Part-Time: Switchable between 2WD and 4WD; offers better fuel efficiency.
- Full-Time: Always in 4WD mode; provides constant traction.
Your driving environment and vehicle type determine the best choice for your needs.
Key Components of a Transfer Case
Understanding the internal structure of a transfer case can aid in diagnosing problems. Key parts include:
- Input Shaft: Connects to the transmission to receive engine power.
- Output Shaft(s): Directs power to the front and rear driveshafts.
- Gears and Chains: Mechanically distribute torque.
- Shift Mechanism: Enables changing between 2WD and 4WD.
- Lubrication Fluid: Reduces wear and prevents overheating.
Each component must work in harmony to ensure smooth performance.
Common Signs of Transfer Case Problems
Early detection of issues can save money. Watch for:
- Grinding noises during gear shifts
- Fluid leaks under the vehicle
- Difficulty staying in 4WD
- Warning lights or unusual dashboard behavior
Act quickly if any of these symptoms appear. Ignoring them may lead to full transfer case failure.
How to Maintain Your Transfer Case
Routine maintenance is key. Here’s how to keep it in top condition:
- Inspect Fluid Levels: Check every 30,000 miles or as recommended.
- Flush and Refill Fluid: Contaminated fluid can cause overheating.
- Inspect Seals and Gaskets: Prevent leaks before they start.
- Run Diagnostics: Ensure sensors and electronic components are functioning.
Timely care enhances durability and prevents costly repairs.
Transfer Case vs. Differential
People often confuse the two. A differential splits torque between left and right wheels, while a transfer case divides power between front and rear axles. Both are essential but perform different tasks. Understanding this difference aids in better vehicle management.
Repair or Replace: What to Choose?
Sometimes, a simple repair like replacing a seal or bearing may be enough. However, if the internal gears or chains are damaged, replacement becomes necessary. Generally, mechanics recommend replacing older units with frequent issues to avoid recurring problems.
Cost of Transfer Case Replacement
Prices can vary widely based on:
- Vehicle make and model
- Labor charges
- Type of transfer case
Typically, expect to spend between $1,500 to $3,000 for parts and labor. Used or remanufactured cases can be cheaper but come with varying warranties.
Tips for Choosing the Right Transfer Case
When replacing or upgrading, consider the following:
- Match with your drivetrain (AWD, 4WD)
- Review torque output
- Evaluate terrain conditions
- Consult a mechanic or expert for compatibility
Making an informed choice ensures long-term satisfaction and safety.
Common Transfer Case FAQs
1. How often should I check transfer case fluid?
Every 30,000 miles or as specified in your vehicle’s manual.
2. Can I drive with a broken transfer case?
It’s risky. You might cause severe drivetrain damage. Repair it ASAP.
3. Does every vehicle have a transfer case?
No. Only 4WD and AWD vehicles use them.
4. Can I upgrade my transfer case for better performance?
Yes, especially if you off-road frequently or tow heavy loads.
5. What causes transfer case failure?
Low fluid, worn gears, or improper use can lead to failure.
6. How do I know which transfer case fits my vehicle?
Check the owner’s manual or consult an automotive expert.
Conclusion
A transfer case is more than just a part—it’s a powerhouse of control and safety for your 4WD or AWD vehicle. Whether you’re navigating off-road trails or slippery winter roads, it ensures your ride is smooth and stable. Stay ahead by maintaining it regularly, recognizing early warning signs, and choosing the right type for your driving needs.
